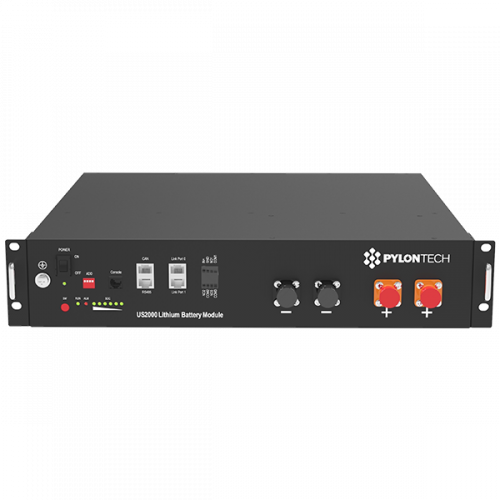

PYLONTECH LFP BATTERY US2000B PLUS, 48V

Lithium battery US2000 series is the latest generation lithium iron phosphate battery module and is a perfect
solution for residential storage facilities. The easy in modulating makes it possible to create storage systems of
small or large capacities. The first installation can be expanded depending on the change in energy requirements
in time latter.

TECHICAL DATA:

• Nominal voltage: 48V
• Nominal capacity: 2400Wh (2.4kW)
• Usable capacity: 2200Wh (2.2kW)
• Charge voltage: 52.5- 53.5V
• Discharge voltage: 45- 53.5V
• Communication port: RS485, CAN
• Configuration (max. in 1 battery group): 8pcs
• IP code: IP20
• Cooling type: Natural cooling
• Working temperature: Charge: from 0 to 50°C, Discharge: from-10 to 50°C
• Weight: 24Kg
• Altitude: up to 2000m
• Cycle life: more than 4500, 25°C
• Dimension: 442x410x89mm

FEATURES:
• The whole module is non-toxic, non-polluting and
environmentally friendly.
• Cathode material is made from LiFePO4 with safety
performance and long cycle life.
• Battery management system (BMS) has protection
functions including over-discharge, over-charge, overcurrent
and high/low temperature.
• Vertical industry integration ensures more than 6000
cycles with 90% DoD.
• The system can automatically manage charge and
discharge state and balance current and voltage of
each cell.
• Flexible configuration, multiple battery modules can
be in parallel for expanding capacity and power.
• Adopted self-cooling mode rapidly reduced system
entire noise.
• The module has less self-discharge, up to 6 months
without charging on shelf.
• No memory effect, excellent performance of shallow
charge and discharge.
• Working temperature range is from -10° to 50°C,(Charging 0~50°C; discharging -10~50°C) with excellent discharge performance and cycle life.
• Compact and fashionable design fits in your home
environment.
• Compatible with most of the available Hybrid
inverters.
