STRUCTURE FOR GROUND AND FLAT ROOF 10kW,SET
423272F/TRTechnical data
- Power 10000W
- Type Set
- Panels quantity 26
- Roof type Flat roof, ground or pre-made cement blocks
-

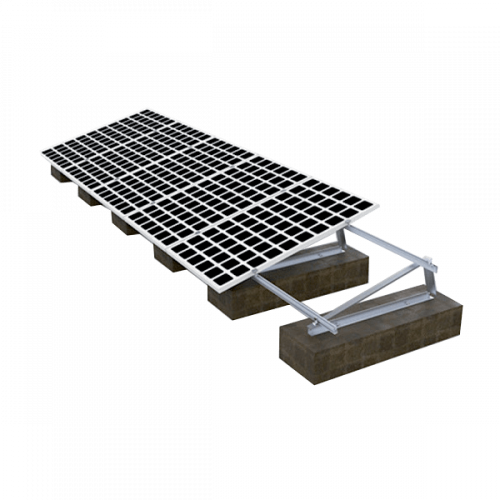

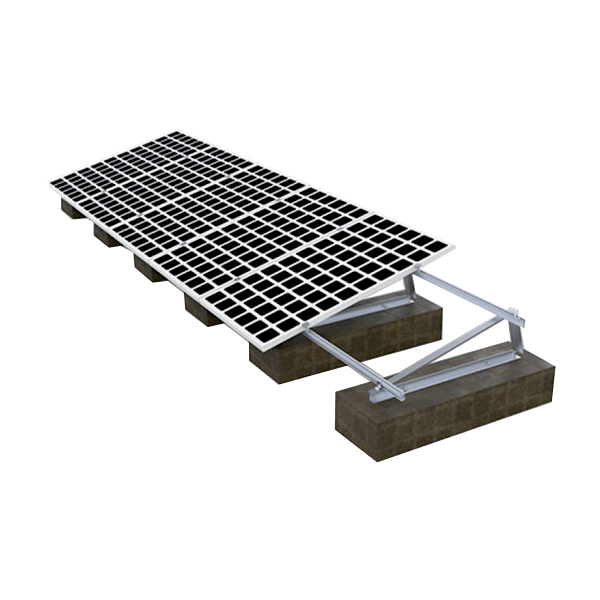

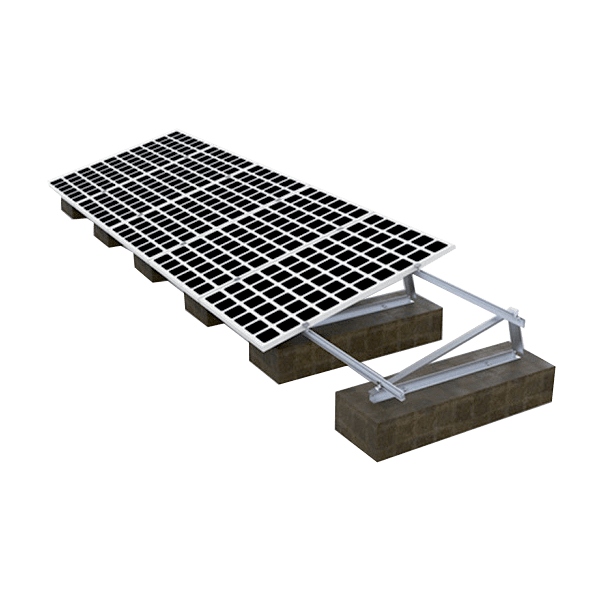

Triangular mounting structure can be installed directly on rooftop, ground or pre-made cement blocks
TECHNICAL DATA:
• For solar system with power: 10kW
• Installation Site: flat roof, ground or pre-made cement blocks
• Panel type: framed
• Wind Speed: Up to 60 m/s
• Snow load: 1.4 KN/m2
FEATURES:
• Triangular mounting brackets with stable structure, it can be installed directly on rooftop, ground or premade cement blocks as your option
• Suitable for all framed PV modules
• Easy and fast installation
• Pre-assembled components save the installation time and cost.
ELEMENTS INCLUDED:
• Rails- 2300mm (423199): 26pcs
• Rail connector- 140mm: (423201): 22pcs
• Middle clamp for framed panel 30-50mm (423202): 66pcs
• End clamp for framed panel 30-50mm (423203): 60pcs
• 30° Triangular mounts (423227): 26pcs
• L-connector for rail (423224): 52pcs
• Hex nut anchor (M517215): 64pcs
• Grounding Clip (423208): 66pcs
• Earth lug (423209): 26pcs
Quantity from each elements are calculated for solar panel (26 pcs) with dimensions 1689x996x35mm and peak power 410W with catalogue number 98SOL340M.
